NET-WL-ANT-008ON – Solwise 8dB Omni Antenna With Tube Mount Outdoor IP66

The ANT-008-ON is an 8dB outdoor omni-directional 2.4GHz antenna, capable of broadcasting a strong WiFi signal across a wide external area.

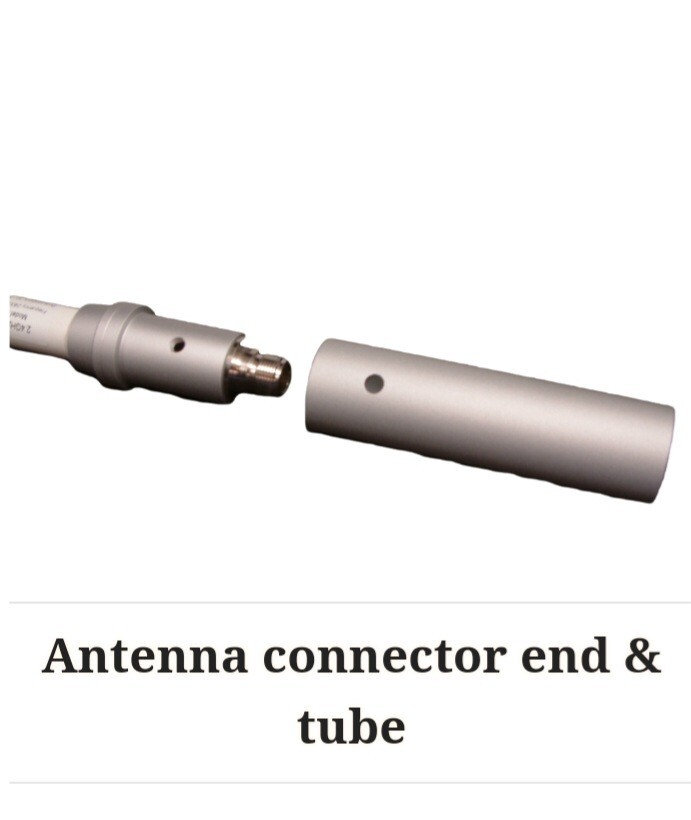

This antenna is 49cm in length, meaning it requires a lot of space and comes with its own pole-mount kit for easy installation. Fitted with an N-type socket connector, it’s generally used with external WiFi equipment such as wireless Access Points and its IP66 rating means it can be used in bad weather conditions with no negative impacts to performance.

Outdoor omni antenna

8dBi gain

N Type socket connector

Pole Mount included

IP66 Waterproof

UV Protected and Durable White Fibreglass Radome

Heavy duty Extruded Aluminium Bracket and stainless U-Bolt

Frequency Range – 2400-2483MHz

Specifications

Omnidirectional Antenna – specs quoted using ‘good’ earth.

Frequency Range2400-2483MHz

Gain8dBi

PolarisationVertical

ConnectorN Socket

VSWR<=1.5

Impedance50 Ω

Horizontal Beamwidth360°

Vertical Beamwidth16°

DimensionsCircumference 19mm

Length 485 mm

Weight0.6Kg

Out of roundness<3dB

Maximum input power100 Watt

Lightning ProtectionDC Grounded

Antenna MountPole Mount kit included

Mounting mast diameter40-60mm

Operating temperature-40~65°

Rated Wind Velocity216Km/h

This item may be an ex display or an unused retail return, may not be in original packaging, or have damaged packaging, may have slight imperfections, hence price reflection
