RRP £157!!!

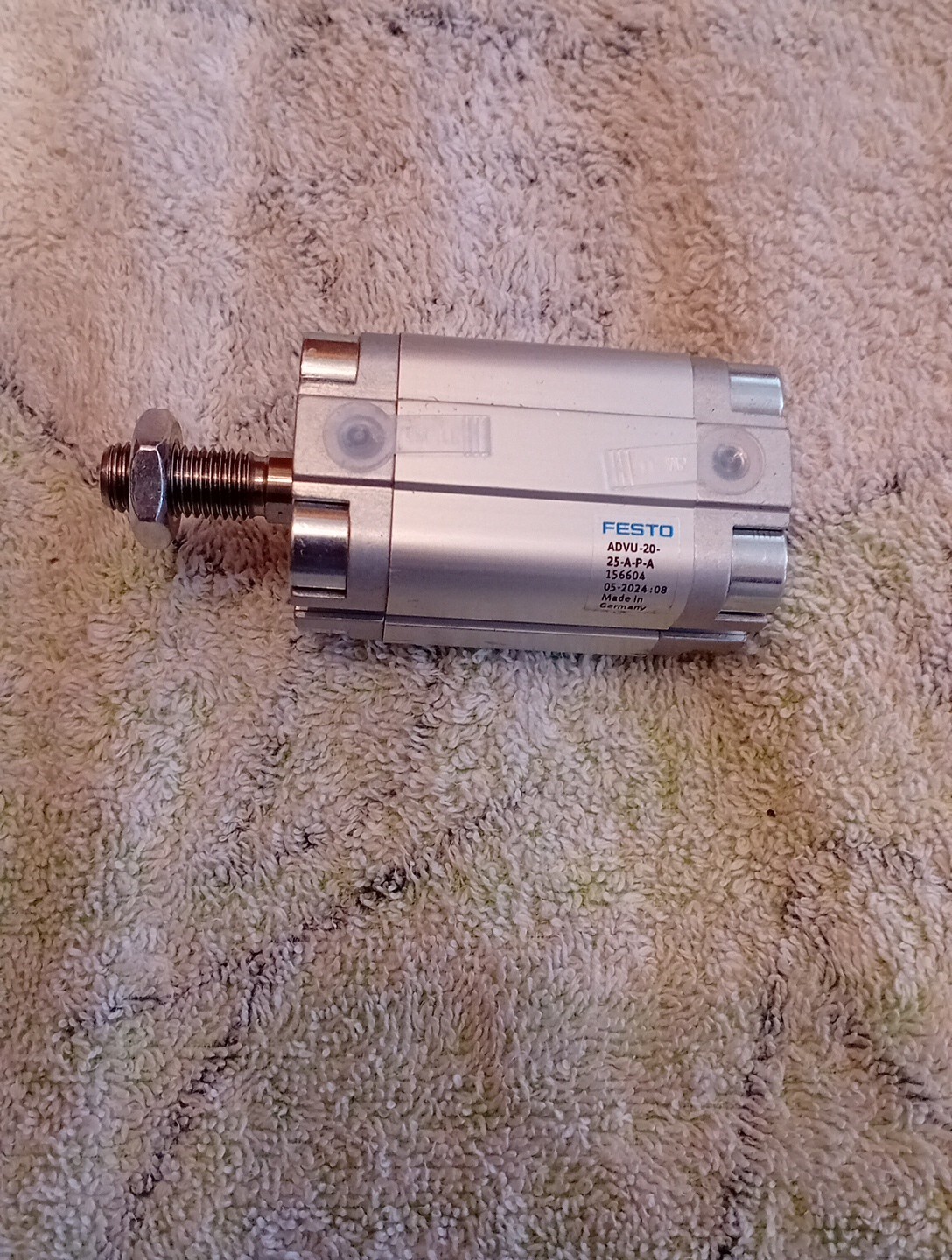

Festo ADVU-20-25-A-P-A 156604 Compact Cylinder

Technical Data

• Stroke25 mm

• Piston diameter20 mm

• CushioningElastic cushioning rings/plates at both ends

• Mounting positionoptional

• Mode of operationDouble-acting

• Piston-rod endMale thread

• DesignPiston Piston rod

• Position detectionVia proximity switch

• Symbol00991217

• VariantsPiston rod at one end

• Operating pressure0.1 MPa … 1 MPa

• Operating pressure1 bar … 10 bar

• Operating pressure14.5 psi … 145 psi

• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

• Corrosion resistance class CRC2 – Moderate corrosion stress

• LABS (PWIS) conformityVDMA24364-B1/B2-L

• Ambient temperature-20 °C … 80 °C

• Impact energy in end positions0.14 J

• Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke141 N

• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke188 N

• Moving mass for 0 mm stroke20 g

• Additional moving mass per 10 mm stroke6 g

• Basic weight for 0 mm stroke149 g

• Additional weight per 10 mm stroke23 g

• Type of mountingEither: With through-hole With accessories

Pneumatic connection

M5

Material collar screws

Galvanised steel

Material cover

Wrought aluminium alloy

Material dynamic seals

NBR

TPE-U(PU)

Material piston rod

• High-alloy stainless steel

Material cylinder barrel Wrought aluminium all

This item may be an ex display or an unused retail return, may not be in original packaging, or have damaged packaging, may have slight imperfections, hence price reflection
